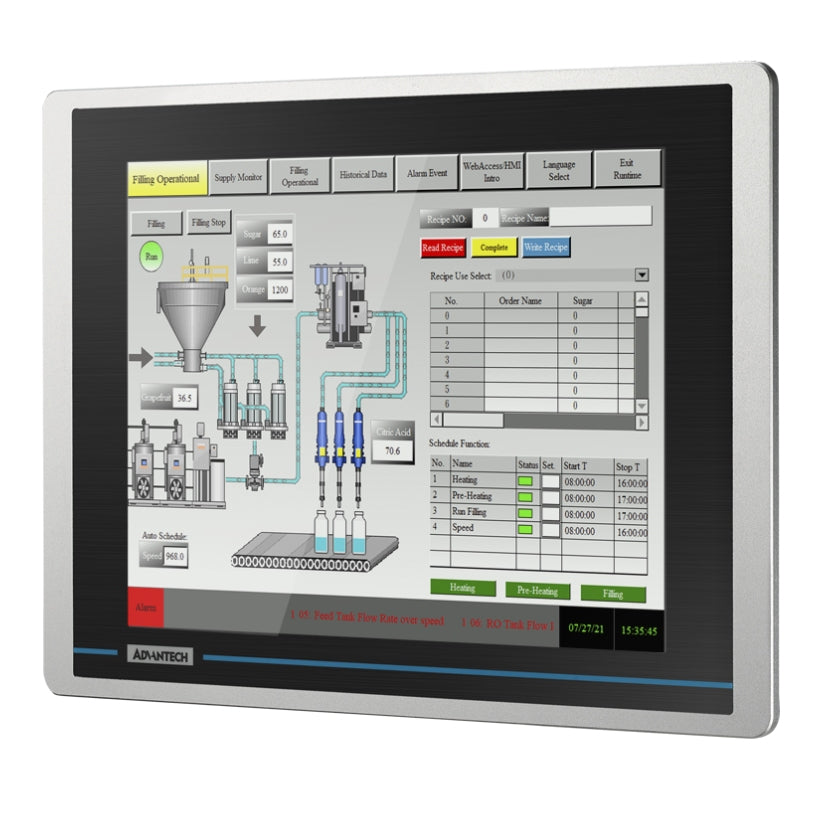

WOP-212K Operator Panel
Melden Sie hier Ihr Kundenkonto an, um bei AIONA online bestellen zu können.
CPU: RISC ARM9 300MHz 32bits
Backup Memory: 128KB
Backup Battery: Type/Voltage/ Capacity/ Working Memory: Manganese dioxide-Li/Organic Electrolyte, 3V, 650mAh
Storage: 128m NAND Flash
Editor-Download, Dokumentation, Datenblätter: wop.aiona.at
| Application Software |
| Operation System | HMI RTOS, HMINavi Designer V4.0 |
| Runtime Max SIze | 65MB (in NAND Flash) |
| Data Logger Max Size | 65MB (in NAND Flash) |
| Max Programming Screen | 7999 Pages |
| Display |
|
Max Macro Commands
|
Type: XGA TFT LCD Size: 12" |
|
Max. Resolution |
1024 x 768 |
|
Max. Colors |
65,536 colors (16bit) |
|
Luminance (cd/m2) |
500 |
|
Backlight Life (hr) |
LED, 20,000 |
Touchscreen: 4 wires Analog resistive

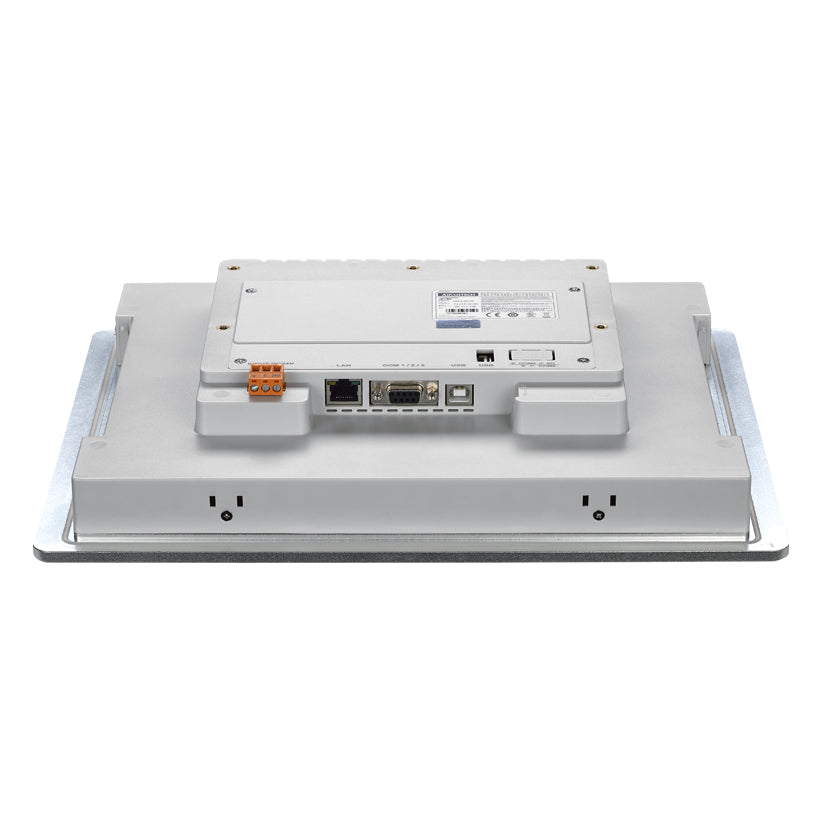

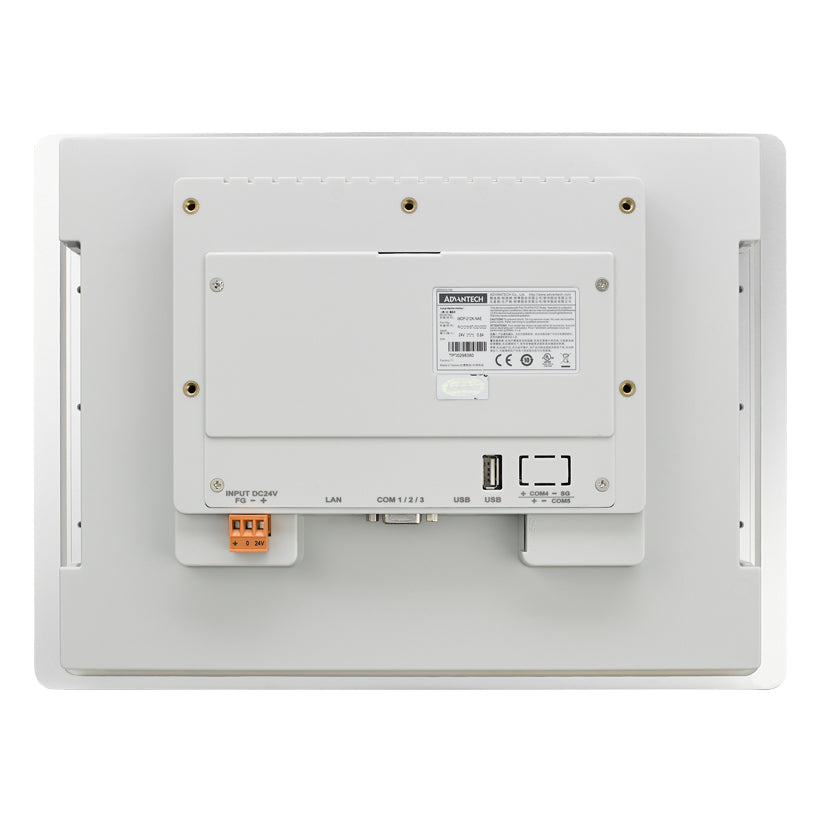

| Communication Interface |
| COM1 | RS-232 (DB9) |
| COM2 | RS-422/485 (DB9) |
| COM3 | RS-485 (DB9) |
| COM4 | - |
| COM5 | - |
| I/OS |
|
Ethernet (RJ45) USB Client |
10/100-BaseT Yes |
|
USB Host |
Yes |
|
Micro-SD Slot |
- |
|
Power Isolation |
Yes |
Power Supply Voltage: 24VDC+/- 10
Power Consumption: 20W
Dimension W x H x D (mm): 335.5 x 245.9 x 56.2
Cut-out Dimension W x H (mm): 302 x 228 mm
Front Panel thickness (mm): 6 mm
Enclosure: Die-cast aluminium alloy front bezel
Net Weight
| Reliability Certification |
|
Operating Temperature Storage Temperature |
2 kg (4.41 Ibs) -10 ∼ 60º (14 ∼ 140ºF) -20 ∼ 70º (4 ∼ 158ºF) |
|
Humidity |
95% RH @ 40ºC |
|
Shock Vibration Ingress Protection |
5 ∼ 500Hz (X, Y, Z, direction, 1Grms, 1hour per axis) Front panel: IP66 |
|
CE |
EN61000-6-2, ENG61000-6-4 |
|
EMI |
FCC Part 15 Class A |
|
UL |
UL61010 |
